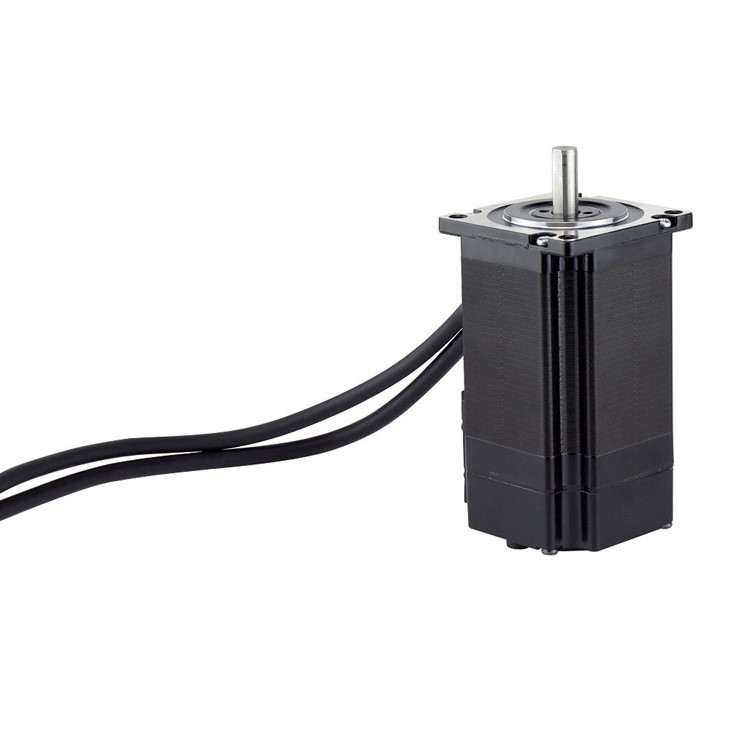

Nema 11 Closed Loop Stepper Motor

Step Angle	1.8deg
Step Angle Accuracy	±5% (Full step, no load)
Resistance Accuracy	±10% (20°C)
Inductance Accuracy	±20% (1KHZ)
Temperature Rise	80°C Max
Ambient Temperature	-20°C~+50°C
Insulation Resistance	100MΩ Min., 500VDC
Dielectric Strength	500VAC for one minute
Shaft radial play	0.02max. (450g load)
Shaft axial play	0.08max. (450g load)
Radial maximum load	28N
Axial maximum load	10N

The resistance accuracy of Nema 11 Series Closed-loop Stepper Motor is ±10% (20°C), the current is kept at 1.8A, and the holding torque is 0.1~0.16N.m. The standard product of Nema 11 Series Closed-loop Stepper Motor is 4 with a step angle of 1.8° Line motor, the output shaft type of the motor is milling single flat platform.

QUALITY CONTROL

We have QC person stay on the production lines do to the inspection.All products must have been inspected before delivery.we do inline inspection and final inspection.

1.All raw material checked once it arrive our factory.

2.All pieces and logo and all details checked during production.

3.All packing details checked during production.

4.All production quality and packing checked on final inspection after finished.

1. Good knowledge on different market can meet special requirements.

2. Real manufacturer with our own factory located in Shenzhen, Guangdong Province, China

3. Strong professional technical team ensure to produce the top quality products.

4. Special cost control system ensure to provide the most favorable price.

5. Rich experience supplying motion control equipment
