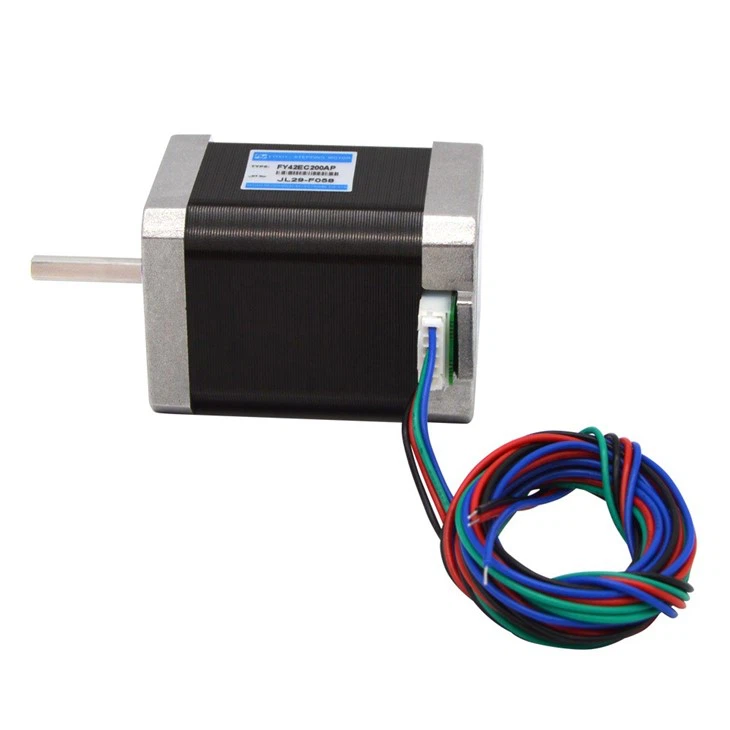

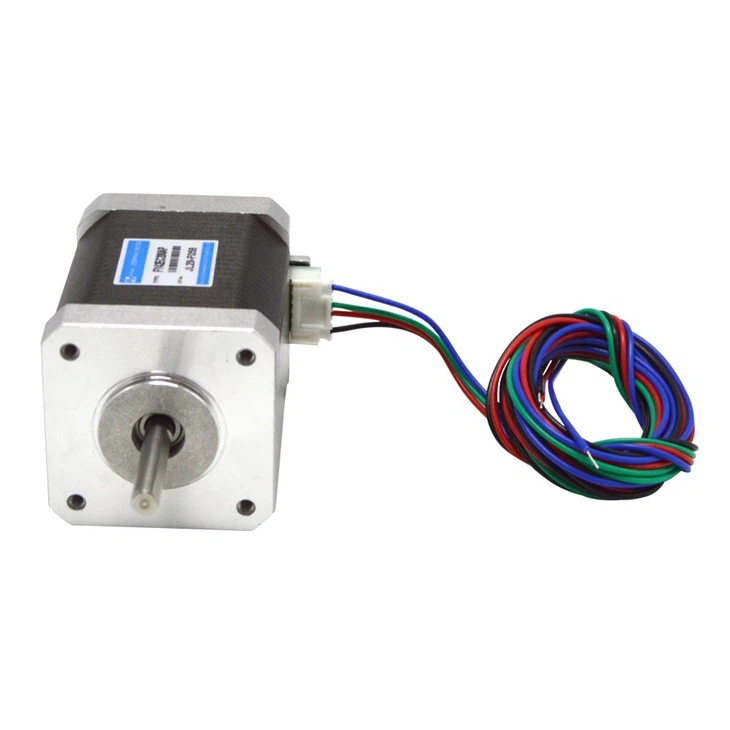

2 Phase Nema 17 Hybrid Stepper Motor
Electrical performance parameters
|
Step Angle |
1.8deg |
|
|
Step Angle Accuracy |
±5% (Full step,no load) |
|
|
Resistance Accuracy |
±10% (20°C) |
|
|
Inductance Accuracy |
±20% (1KHZ) |
|
|
Temperature Rise |
80°C Max |
|
|
Ambient Temperature |
-20°C~+50°C |
|
|
Insulation Resistance |
100MΩ Min., 500VDC |
|
|
Dielectric Strength |
500VAC for one minute |
|
|
Shaft radial play |
0.02max. (450g load) |
|
|
Shaft axial play |
0.08max. (450g load) |
|
|
Radial maximum load |
28N |
|
|
Axial maximum load |
10N |
Models and Specifications
|
Model |
Step Angle (°) |
Motor Length |
Holding Torque |
Rated Current (A) |
Phase Resistance (Ω) |
Phase Inductance (mH) |
Rotor Inertia (g.cm²) |
Weight (Kg) |
Wires |
|
|
(mm) |
N.m |
Oz/in |
||||||||
|
FY42EX080A |
1.8 |
30 |
0.16 |
22.86 |
0.8 |
3.8 |
4.5 |
30 |
0.20 |
4 |
|
FY42ES150A |
1.8 |
34 |
0.28 |
40 |
1.5 |
2.4 |
2.8 |
34 |
0.22 |
4 |
|
FY42EM150A |
1.8 |
40 |
0.40 |
57.14 |
1.5 |
2.5 |
5.0 |
54 |
0.28 |
4 |
|
FY42EL180A |
1.8 |
48 |
0.50 |
71.43 |
1.8 |
1.8 |
3.2 |
68 |
0.35 |
4 |
|
FY42EC200A |
1.8 |
60 |
0.65 |
92.86 |
2.0 |
1.4 |
2.5 |
80 |
0.45 |
4 |
Dimension

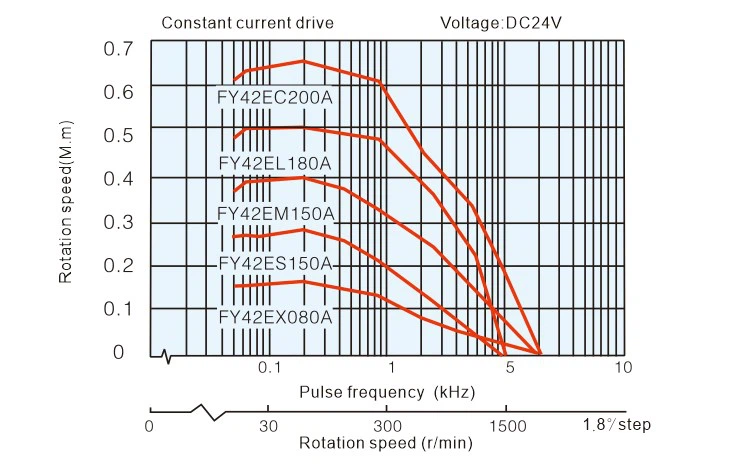

Speed-torque Characteristic Curve

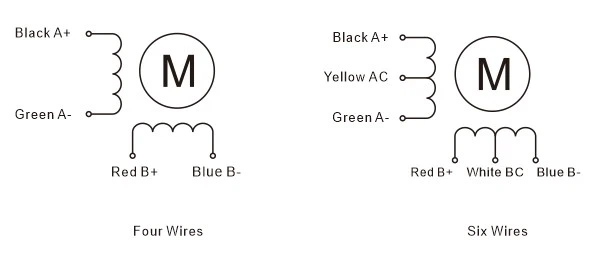

Motor Wiring Diagram
Advantages
2 Phase Nema 17 Hybrid Stepper Motor uses imported materials to ensure the stability and reliability of the motor, making it suitable for automation equipment and instruments in various motion control fields such as electronic processing and testing, semiconductor packaging, and CNC machine tools. 2 Phase Nema 17 Hybrid Stepper Motor is a low noise, high-performance stepper motor that users expect.
