2 Phase Stepper Driver DM Series
2. Low vibration, low noise: automatically calculate the resonance point, effectively suppress the noise and vibration of the motor at low speed
Specification Model and Technical Data
|
Model |
Voltage |
Driver Current |
Subdivision |
Max. Pulse Frequency |
Dimensions (mm) |
Adaptive Stepper Motor |
|
FYDM402T |
DC24~40V |
0.5~2.2A, 8 channels |
20000 Steps/rev, 16 channels |
200Kpps |
96*60.5*24.5 |
Nema 8, Nema 11, Nema 14, Nema17 |
|
FYDM403T |
DC24~40V |
1.0~3.5A, 8 channels |
25600 Steps/rev, 16 channels |
200Kpps |
116*70*26.5 |
Nema 8, Nema 11, Nema 14, Nema17, Nema 23 |
|
FYDM504T |
DC24~50V, AC20~40V |
1.0~4.5A, 8 channels |
25600 Steps/rev, 16 channels |
200Kpps |
112*75.5*34 |
Nema 23, Nema 24, Nema 34 |
|
FYDM506T |
DC24~50V, AC20~40V |
1.5~5.6A, 8 channels |
25600 Steps/rev, 16 channels |
200Kpps |
112*75.5*34 |
Nema 23, Nema 24, Nema 34 |
|
FYDM808T |
DC24~80V, AC20~70V |
2.4~7.8A, 8 channels |
51200 Steps/rev, 16 channels |
200Kpps |
138.5*97.5*53 |
Nema 23, Nema 24, Nema 34, Nema 42 |
|
FYDM2207T |
AC110~220V |
1.2~7.0A, 16 channels |
40000 Steps/rev, 16 channels |
200Kpps |
178*109*68 |
Nema 42, Nema 51 |
Features
1. High performance and high efficiency: the latest 32-bit DSP control technology enables the motor to achieve the best output performance
2. Low vibration, low noise: automatically calculate the resonance point, effectively suppress the noise and vibration of the motor at low speed
3. Small temperature rise and long life: precise current control makes the motor temperature rise low
4. Large speed range: choose a suitable stepping motor, up to 1500rpm
5. Interference frequency filtering: photoelectric isolation differential signal input, impulse response frequency up to 200Kpps
6. Strong function and low repair rate: imported industrial-grade components, mature and stable technology; undervoltage, overvoltage, overcurrent, short circuit, open circuit, fault status indication and automatic protection function
Application field
2 Phase Stepper Driver DM series is suitable for various automation equipment and instruments in the field of motion control, such as: electronic processing and testing, semiconductor packaging, laser cutting and welding, laser phototypesetting, packaging machinery, engraving machines, marking machines, cutting machines, clothing plotters, CNC machine tools, automation Assembly equipment, etc. 2 Phase Stepper Driver DM series is the first choice for users who expect low noise, superior high-speed performance and strong cost-effective competition.

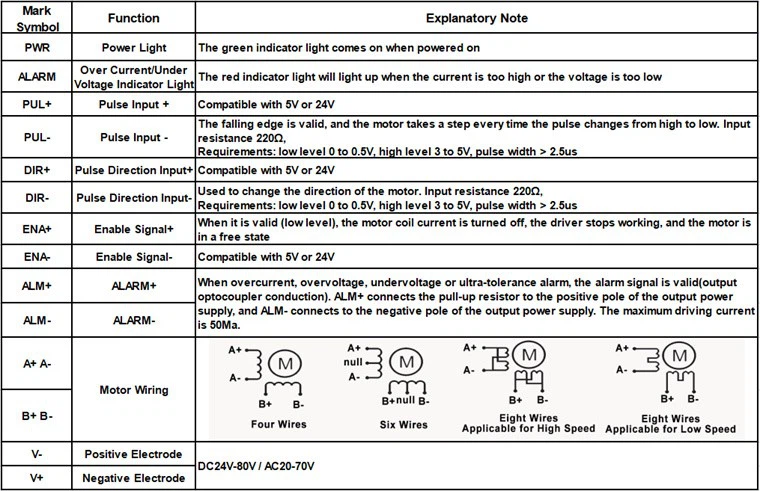

Driver Wiring Diagram
Operating Current Setting
FYDM402T
FYDM403T
FYDM504T
FYDM506T
FYDM808T
FYDM2207T

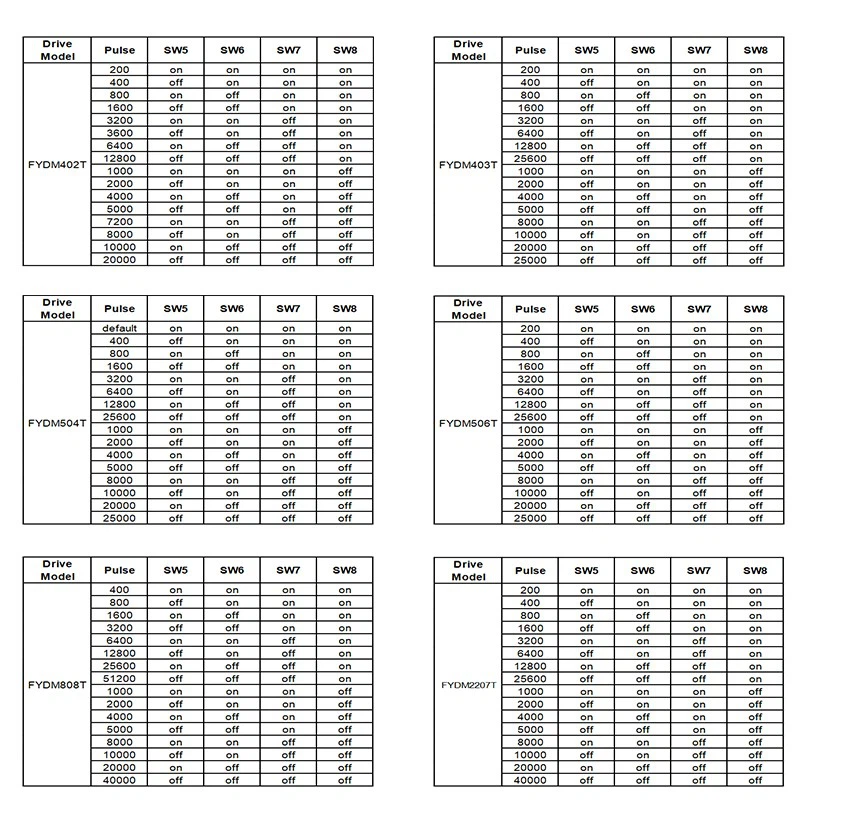

Microstep Subdivision Settings
Input Signal Waveform Timing Diagram
Notice
1. The input voltage of 2 Phase Stepper Driver DM series must not exceed DC80V/AC70V. The green indicator PWR is on when the drive is powered on.
2. When 2 Phase Stepper Driver DM series driver fault indicator light is on, please check the motor wiring and control signal line. If it is a motor wiring or other short-circuit fault, you need to power on again after troubleshooting.
3. SW4 is used to set the locking current function: ON=Full Current (full current locking), OFF=Half Current (half current locking).
When leaving the factory, SW4 is set to OFF, which can reduce the heating of the motor and driver and improve reliability. The current is automatically reduced by 50% after the pulse train stops for 100ms.
4. 2 Phase Stepper Driver DM series driver has a single and double pulse selection function, which can be set through the communication port. The factory default is pulse+direction.
